Weather Station ASIC Architecture

Feb 2026

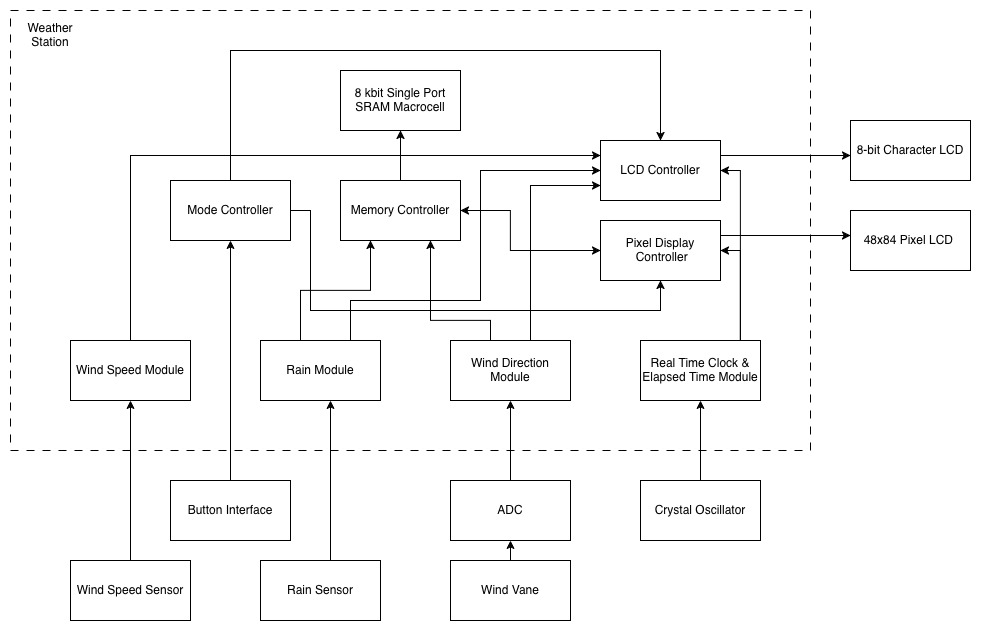

This diagram shows the system architecture of the weather station ASIC.

Weather Station Architecture Diagram

The design integrates rain, wind direction, and wind speed sensors with both an 8-bit character LCD and an 48×84 pixel display. The system was implemented in SystemVerilog and validated through the full ASIC design flow.
